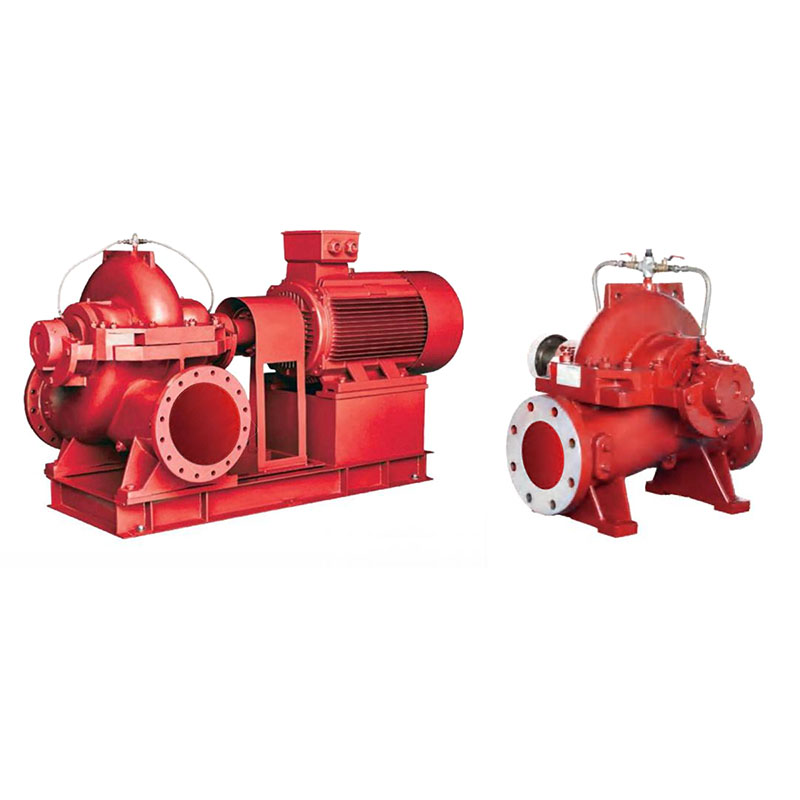

تقدم ZEN Machinery، كشركة مصنعة محترفة، مضخة SCM مزدوجة الشفط المنفصلة عالية الجودة مع شفط مزدوج وغطاء منقسم مع غلاف حلزوني منقسم محوريًا. غلاف المضخة مصنوع من مادة HT250 مع طلاء مضاد للتآكل، مما يضمن القوة الهيكلية ومقاومة التآكل على المدى الطويل. المكون الرئيسي هو دافع شعاعي مزدوج الشفط مصنوع من مادة AISI 304 أو HT250، ومجهز بغطاء عمود وقائي، ومتوفر مع كل من الأختام الميكانيكية وأختام التعبئة.
يتم توفير مضخة ZEN Machinery SCM ذات الشفط المزدوج ذات الجودة العالية بشكل قياسي مع محامل دوارة مشحمة مسبقًا، مما يضمن عمر خدمة خالي من التسرب دون الحاجة إلى الصيانة. سواء كانت مدفوعة بمحرك كهربائي أو بمحرك ديزل، فإن المضخة تظهر استقرارًا على المدى الطويل، وتلبي تمامًا متطلبات التطبيقات المهمة مثل مكافحة الحرائق وإمدادات المياه.
1. درجة حرارة السائل من -10 درجة مئوية إلى +120 درجة مئوية
2. درجة الحرارة المحيطة من -0 درجة مئوية إلى +50 درجة مئوية
3. ماكس. ضغط التشغيل 25 بار/S1 مستمر
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 80-210A1 | 131-164-197 | 60.5-55-50 | 26.8-29.9-33.4 | 125x80 |
| 80-210A2 | 121-151-181 | 52-47.5-42.2 | 21.6-24.1-26.1 | 125×80 |
| 80-210A3 | 115-144-173 | 44-39-35 | 17.8-19-21.1 | 125x80 |
| 80-210A4 | 110-137-164 | 37-33.5-27.7 | 14.7-16-16.7 | 125x80 |
| 80-210ب1 | 107-134-160 | 55.5-51-46 | 20.5-22.9-25.1 | 125x80 |
| 80-210ب2 | 106-133-159 | 47.7-43.5-37 | 17.6-19.3-20 | 125x80 |
| 80-210ب3 | 100-124-149 | 40-36-30 | 14.4-15.6-16.5 | 125×80 |
| 80-210ب4 | 91-113-136 | 35-31-27 | 12.1-12.9-13.9 | 125x80 |
| 80-270A1 | 166-207-248 | 97.5-90-79 | 57-64.6-70.8 | 125x80 |
| 80-270A2 | 156-194-233 | 83.5-77-69 | 46.6-52.6-58.1 | 125x80 |
| 80-270A3 | 147-184-220 | 70-63.5-55 | 37.5-41.8-44.6 | 125×80 |
| 80-270A4 | 138-173-198 | 56.5-50-45 | 28.7-31.4-32.8 | 125×80 |
| 80-270B1 | 137-171-205 | 91-82.5-72.5 | 44.6-49.9-54.1 | 125x80 |
| 80-270ب2 | 122-153-184 | 79.5-71.5-67 | 35.6-39.1-44.7 | 125x80 |
| 80-270ب3 | 115-144-173 | 66.8-60-53 | 28.5-31.3-33.7 | 125x80 |
| 80-270ب4 | 110-137-164 | 54.5-49-42 | 22.4-24.5-25.9 | 125x80 |
| 100-250A1 | 230-288-346 | 83-75-67 | 64.2-70.9-78.4 | 150x100 |
| 100-250A2 | 219-274-328 | 69-63-55 | 51.9-58.3-62.3 | 150x100 |
| 100-250A3 | 209-261-313 | 59-52-46.5 | 43.5-46.8-51.5 | 150x100 |
| 100-250A4 | 193-240-290 | 49-45-37 | 33.9-37.7-39.2 | 150x100 |
| 100-250ب1 | 196-245-294 | 75-68-59 | 50-55.6-59.8 | 150x100 |
| 100-250ب2 | 180-223-268 | 65-59-51 | 40.6-44.7-47.9 | 150x100 |
| 100-250ب3 | 165-205-246 | 56-51-44 | 32.9-36.8-38.8 | 150x100 |
| 100-250ب4 | 150-190-227 | 48-43-38 | 26.4-29.1-31.1 | 150x100 |
| 100-310A1 | 294-367-440 | 135-123-105 | 137.7-153.8-164 | 150x100 |
| 100-310A2 | 268-335-402 | 116-106-92 | 108-121.4-131 | 150x100 |
| 100-310A3 | 242-302-363 | 98-90-80 | 82.7-93.5-102.5 | 150x100 |
| 100-310A4 | 182-227-333 | 86-81-63 | 62-68-76 | 150x100 |
| 100-310ب1 | 226-283-340 | 130-119-105 | 105-117.4-128.5 | 150x100 |
| 100-310ب2 | 208-260-310 | 111-103-90 | 81.8-93.7-100 | 150x100 |
| 100-310ب3 | 200-250-300 | 92-84-74 | 65.8-72.8-80.5 | 150x100 |
| 100-310ب4 | 187-234-281 | 78-69-60 | 53.1-57.1-61.2 | 150x100 |
| 125-230A1 | 426-541-639 | 68-60-48 | 93.8-101.8-101.9 | 200x125 |
| 125-230A2 | 392-490-585 | 60-52-43.5 | 78.1-82.1-84.4 | 200x125 |
| 125-230A3 | 363-454-544 | 50-43.5-35 | 63.4-65.1-66.6 | 200x125 |
| 125-230A4 | 340-425-489 | 40-34-30 | 49.4-50.8-52.5 | 200x125 |
| 125-230ب1 | 377-472-566 | 68-60.5-51 | 84.2-92-101.5 | 200x125 |
| 125-230ب2 | 349-436-523 | 60-53-44 | 70.3-74.8-77.2 | 200x125 |
| 125-230ب3 | 328-410-493 | 52-45-37 | 60.1-61.3-63.3 | 200x125 |
| 125-230ب4 | 305-382-458 | 42.5-37-30 | 47.1-49.9-49.9 | 200x125 |
| 125-290A1 | 428-535-642 | 117-108-95 | 166-187-202 | 200x125 |
| 125-290A2 | 397-497-596 | 97-88-75 | 131-145-153 | 200x125 |
| 125-290A3 | 363-454-544 | 80-72-62 | 101-111-117 | 200x125 |
| 125-290A4 | 323-403-484 | 65-57-47 | 74.7-80.2-80.5 | 200x125 |
| 125-290B1 | 383-480-575 | 113-100-85.5 | 145-157-166 | 200x125 |
| 125-290ب2 | 348-436-523 | 93.5-83.5-70 | 112-121-126 | 200x125 |
| 125-290ب3 | 308-385-462 | 78-70-60 | 84.5-93-96.9 | 200x125 |
| 125-290ب4 | 274-342-410 | 60-55-47 | 59.6-67.4-70 | 200x125 |
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 80-210A1 | 66-83-100 | 15-13.8-12.2 | 3.4-3.8-4.2 | 125x80 |
| 80-210A2 | 61-76-90 | 13-11.8-10.5 | 2.7-3-3.3 | 125x80 |
| 80-210A3 | 58-72-87 | 11-9.8-8.7 | 2.2-2.4-2.6 | 125x80 |
| 80-210A4 | 55-69-83 | 9.1-8.2-7 | 1.8-2-2.1 | 125×80 |
| 80-210ب1 | 52-65-78 | 14.2-12.8-10 | 2.6-2.8-3.1 | 125x80 |
| 80-210ب2 | 52-64-77 | 12-10.8-11.7 | 2.1-2.4-3.1 | 125×80 |
| 80-210ب3 | 50-61-73 | 10-9-7.8 | 1.8-1.9-2 | 125×80 |
| 80-210ب4 | 47-58-70 | 8.7-7.6-6.5 | 1.5-1.6-1.8 | 125×80 |
| 80-270A1 | 83-104-125 | 24-22.5-19.5 | 7-8.1-8.8 | 125x80 |
| 80-270A2 | 80-99-120 | 21.3-19-17 | 6.1-6.6-7.4 | 125x80 |
| 80-270A3 | 72-90-108 | 17.5-16-13.7 | 4.6-5.2-5.4 | 125x80 |
| 80-270A4 | 67-84-100 | 13.8-13-11.5 | 3.4-4-4.3 | 125×80 |
| 80-270B1 | 68-85-102 | 23.1-20.7-18.2 | 5.7-6.2-6.7 | 125×80 |
| 80-270ب2 | 61-77-92 | 20-18.1-16 | 4.5-5-5.3 | 125x80 |
| 80-270ب3 | 58-72-86 | 16.5-15-13.2 | 3.5-3.9-4.2 | 125x80 |
| 80-270ب4 | 53-67-80 | 13.8-12.5-10.8 | 2.7-3.1-3.2 | 125x80 |
| 80-370A1 | 90-113-136 | 42-38.8-33.5 | 14.8-16.2-17.3 | 125×80 |
| 80-370A2 | 80-99-120 | 35-33-29.1 | 10.6-12.1-13.3 | 125×80 |
| 80-370A3 | 70-88-106 | 29.3-27.5-24.7 | 8.2-9.4-10.2 | 125x80 |
| 80-370A4 | 65-81-98 | 23.8-22.5-20 | 6.4-7.4-8 | 125x80 |
| 80-370ب1 | 80-99-120 | 38.8-35.5-31.3 | 11.8-13.1-14.3 | 125x80 |
| 80-370ب2 | 72-90-108 | 34.1-30.8-26.3 | 9.7-10.8-11.4 | 125x80 |
| 80-370ب3 | 60-76-90 | 27.5-25.5-22.5 | 7-8-8.5 | 125×80 |
| 80-370ب4 | 53-67-80 | 21.3-20-17.5 | 4.9-5.7-6 | 125×80 |
| 100-250A1 | 115-144-173 | 21.2-18.8-17.5 | 8.2-8.9-10 | 150x100 |
| 100-250A2 | 112-140-167 | 17.5-15.8-13.2 | 6.7-7.4-7.7 | 150x100 |
| 100-250A3 | 100-126-150 | 14.5-13.5-11.9 | 5.1-5.9-6.3 | 150x100 |
| 100-250A4 | 97-120-145 | 12.2-11.2-9.5 | 4.2-4.7-5 | 150x100 |
| 100-250ب1 | 98-122-147 | 18.8-17-15 | 6.2-7-7.6 | 150x100 |
| 100-250ب2 | 90-112-135 | 16.3-14.5-12.7 | 5.1-5.6-6 | 150x100 |
| 100-250ب3 | 85-106-128 | 13.7-12.5-11.3 | 4.1-4.7-5.3 | 150x100 |
| 100-250ب4 | 75-94-113 | 12.1-11-9.6 | 3.3-3.7-3.9 | 150x100 |
| 100-310A1 | 148-185-222 | 34-31-26.8 | 17.4-19.6-21 | 150x100 |
| 100-310A2 | 133-166-200 | 29.3-27-24.3 | 13.4-15.3-17 | 150x100 |
| 100-310A3 | 120-151-180 | 24.8-22.5-20 | 10.5-11.7-12.8 | 150x100 |
| 100-310A4 | 112-140-162 | 20.2-18.5-16.2 | 7.9-9-9.2 | 150x100 |
| 100-310ب1 | 112-140-168 | 32.5-29.5-25 | 13-14.1-15.5 | 150x100 |
| 100-310ب2 | 106-133-160 | 27.5-25.5-22 | 10.4-11.6-12.8 | 150x100 |
| 100-310ب3 | 100-124-150 | 23-21.2-18 | 8.2-9-9.8 | 150x100 |
| 100-310ب4 | 94-117-140 | 19.4-17-15 | 6.5-6.9-7.6 | 150x100 |
| 100-375A1 | 148-185-220 | 57-51-44.2 | 31.4-33.5-36 | 150x100 |
| 100-375A2 | 133-167-200 | 47.3-46-38 | 24.5-28.3-29.2 | 150x100 |
| 100-375A3 | 124-155-186 | 41-38-31 | 20.3-22.6-23.1 | 150x100 |
| 100-375A4 | 108-135-162 | 32.5-30.3-25.3 | 14.4-14.5-16.8 | 150x100 |
| 100-375ب1 | 130-162-195 | 56.2-52-45.8 | 28.4-31.4-35.9 | 150x100 |
| 100-375ب2 | 114-142-170 | 47.5-44-39 | 22.2-23.7-27.3 | 150x100 |
| 100-375ب3 | 105-130-157 | 40-37.5-32.5 | 17.7-18.8-21.7 | 150x100 |
| 100-375ب4 | 92-115-138 | 30.8-28.7-25 | 12.7-14.3-15.4 | 150x100 |
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 125-230A1 | 220-274-328 | 17-14.8-12 | 12.1-12.9-13.1 | 200x125 |
| 125-230A2 | 193-241-290 | 15-13.2-10.8 | 9.7-10.3-10.4 | 200x125 |
| 125-230A3 | 184-230-277 | 12.6-10.6-8 | 8-8.1-8.1 | 200x125 |
| 125-230A4 | 167-209-250 | 10.3-8.7-6.8 | 6.4-6.4-6.4 | 200x125 |
| 125-230ب1 | 190-238-307 | 17-15.1-11.5 | 10.5-11.6-12 | 200x125 |
| 125-230ب2 | 170-212-255 | 15-13.5-11.4 | 8.6-9.3-9.7 | 200x125 |
| 125-230ب3 | 164-205-246 | 13-11.5-9.2 | 7.5-7.8-7.9 | 200x125 |
| 125-230ب4 | 156-195-223 | 10.5-9.1-7.7 | 5.9-6.2-6.3 | 200x125 |
| 125-290A1 | 215-269-323 | 29.2-27-23.5 | 20.8-23.6-25.2 | 200x125 |
| 125-290A2 | 195-243-292 | 24.4-22-19.6 | 16.1-17.8-19.5 | 200x125 |
| 125-290A3 | 178-223-268 | 20-18-15.5 | 12.3-13.7-14.4 | 200x125 |
| 125-290A4 | 161-202-242 | 16.3-14.2-11.8 | 9.3-10-10.2 | 200x125 |
| 125-290B1 | 193-241-290 | 27.5-25-21.3 | 17.8-19.8-20.6 | 200x125 |
| 125-290ب2 | 174-218-261 | 23.4-21-17.5 | 13.9-15.2-16 | 200x125 |
| 125-290ب3 | 157-196-235 | 19-17.5-15 | 10.4-11.8-12.3 | 200x125 |
| 125-290ب4 | 138-173-207 | 15.1-13.7-11.3 | 7.7-8.5-8.6 | 200x125 |
| 125-365A1 | 245-310-360 | 50-47-44 | 41.2-47.2-52.3 | 200x125 |
| 125-365A2 | 225-281-337 | 41.6-39-35.6 | 31.8-36-40.4 | 200x125 |
| 125-365A3 | 205-256-307 | 33.7-31.5-28.2 | 24.2-26.8-29.8 | 200x125 |
| 125-365A4 | 184-230-278 | 25.5-24-20.9 | 16.9-18.8-20.2 | 200x125 |
| 125-365B1 | 222-277-333 | 46.3-43-38.8 | 35.4-40.1-44 | 200x125 |
| 125-365ب2 | 202-252-302 | 39.8-37-32.8 | 28-31.8-34.2 | 200x125 |
| 125-365ب3 | 182-227-272 | 32.6-30.5-27.5 | 21.4-24.5-26.8 | 200x125 |
| 125-365ب4 | 158-198-238 | 26.3-24.5-21.8 | 14.9-17.4-18.8 | 200x125 |
| 125-500A1 | 262-328-393 | 82-76-70 | 73.7-82.7-96.4 | 200x125 |
| 125-500A2 | 233-292-342 | 70-66.5-62 | 56.7-67.3-74.8 | 200x125 |
| 125-500A3 | 205-256-307 | 60-56-51.5 | 44-50.6-56.6 | 200x125 |
| 125-500A4 | 184-230-252 | 50-47-45 | 34.2-38.8-40.7 | 200x125 |
| 125-500ب1 | 235-293-352 | 75-69.5-63 | 61.7-70.3-78.5 | 200x125 |
| 125-500ب2 | 217-272-326 | 65-60.5-55 | 50.1-57.4-64.3 | 200x125 |
| 125-500ب3 | 181-227-272 | 57-53-48.3 | 37.5-42.5-47.3 | 200x125 |
| 125-500ب4 | 161-202-234 | 47.5-45-40 | 28.2-32.5-34.5 | 200x125 |
| 150-290A1 | 354-443-531 | 24-21-17.5 | 27.1-29.1-30.3 | 200x150 |
| 150-290A2 | 323-403-484 | 21-18-15 | 22.2-23-24 | 200x150 |
| 150-290A3 | 302-378-454 | 17.5-15-12.3 | 18-18.4-19.1 | 200x150 |
| 150-290A4 | 280-350-396 | 13.7-11.5-10 | 13.9-14.2-14.2 | 200x150 |
| 150-290ب1 | 317-396-475 | 23.4-20.4-16.6 | 24-25.6-25.7 | 200x150 |
| 150-290ب2 | 302-378-454 | 20-17-13.7 | 19.9-20.6-20.7 | 200x150 |
| 150-290ب3 | 282-353-423 | 17.5-14.5-11.3 | 16.6-16.6-16.5 | 200x150 |
| 150-290ب4 | 265-331-378 | 14-11.5-9.8 | 13-13-13.3 | 200x150 |
| 150-360A1 | 357-446-536 | 41.3-38-34.2 | 48.4-54.3-60.4 | 200x150 |
| 150-360A2 | 323-403-484 | 34.2-31-26.3 | 36.9-41-42.9 | 200x150 |
| 150-360A3 | 298-370-445 | 28.7-25-21 | 29.4-31.2-32.3 | 200x150 |
| 150-360A4 | 265-331-398 | 23.4-20-16.7 | 22.1-23.1-23.3 | 200x150 |
| 150-360ب1 | 325-407-488 | 39.2-35-30 | 42.3-46.2-49.3 | 200x150 |
| 150-360ب2 | 294-367-440 | 33-29.5-25 | 32.8-36-37.5 | 200x150 |
| 150-360ب3 | 267-334-400 | 27.5-25-21.3 | 25.4-28.5-29.8 | 200x150 |
| 150-360ب4 | 233-292-350 | 22.8-20.5-17.5 | 19.2-20.9-22 | 200x150 |
| 150-460A1 | 412-515-618 | 71-66-60 | 99.4-112.8-126.2 | 200x150 |
| 150-460A2 | 377-472-566 | 58-54.5-48 | 75.2-86.4-94.9 | 200x150 |
| 150-460A3 | 346-432-516 | 47.5-43.5-37 | 57-64-69.7 | 200x150 |
| 150-460A4 | 317-396-475 | 38-35-28.2 | 42.6-48.1-50.7 | 200x150 |
| 150-460ب1 | 350-440-527 | 65-60-53.5 | 78.3-88.6-97.6 | 200x150 |
| 150-460ب2 | 323-403-484 | 54-50-44.5 | 60.3-68.2-75.2 | 200x150 |
| 150-460ب3 | 300-375-450 | 44.4-40-34.5 | 46.5-51-57.1 | 200x150 |
| 150-460ب4 | 260-324-390 | 35.5-33-28.4 | 33.5-37.3-40.7 | 200x150 |
| 150-605A1 | 467-583-700 | 112-105-95.5 | 182.6-206-233.4 | 200x150 |
| 150-605A2 | 440-550-648 | 96-88.5-81 | 151.1-168-187.5 | 200x150 |
| 150-605A3 | 412-515-605 | 82-75-68 | 120-134.8-151.4 | 200x150 |
| 150-605A4 | 378-472-526 | 67.5-61.5-55.2 | 92.3-102.6-106.8 | 200x150 |
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 150-605B1 | 430-536-617 | 98-90-82 | 149.2-166.4-181.5 | 200x150 |
| 150-605ب2 | 392-490-576 | 85-78-70 | 118.9-133.3-148.1 | 200x150 |
| 150-605ب3 | 357-446-535 | 75-68.5-60 | 96.2-108.2-118.4 | 200x150 |
| 150-605ب4 | 323-403-484 | 62.5-57.5-50 | 73.4-83.1-91.6 | 200x150 |
| 200-320A1 | 556-695-834 | 34-30-25 | 60-64.9-67.2 | 250×200 |
| 200-320A2 | 518-648-778 | 29-25.5-21.3 | 48.8-52-54 | 250x200 |
| 200-320A3 | 481-601-720 | 25-21.3-17.2 | 40.7-41-42.3 | 250x200 |
| 200-320A4 | 440-550-612 | 18.9-17-15.3 | 29-32.3-32.9 | 250×200 |
| 200-320B1 | 510-637-765 | 32.3-28-23.4 | 52.7-56.2-58 | 250×200 |
| 200-320ب2 | 475-594-713 | 28.5-24.5-20 | 44-46.1-46.9 | 250×200 |
| 200-320ب3 | 445-558-670 | 23.8-21-17.2 | 35.6-38-38.4 | 250×200 |
| 200-320ب4 | 412-515-595 | 20-17-14.2 | 28.8-29.1-29.5 | 250x200 |
| 200-420A1 | 567-709-850 | 57-52-47 | 104-116-129 | 250×200 |
| 200-420A2 | 504-630-756 | 47.5-42.5-37.5 | 79.1-86.3-93.1 | 250×200 |
| 200-420A3 | 458-572-687 | 40-35.5-30 | 62-66.7-68.8 | 250x200 |
| 200-420A4 | 409-511-613 | 32.5-27.5-24 | 45.8-49-50.1 | 250x200 |
| 200-420B1 | 518-648-778 | 54-48.5-42 | 90.8-99.1-107 | 250×200 |
| 200-420ب2 | 467-583-700 | 45-40.5-35 | 69.8-76.6-81.9 | 250×200 |
| 200-420ب3 | 423-530-635 | 38-34.5-29 | 54.8-60.6-63.1 | 250x200 |
| 200-420B4 | 375-468-562 | 31.5-28-24 | 41.5-45.8-47.5 | 250×200 |
| 200-520A1 | 654-817-980 | 97-91-83 | 210-241-272 | 250x200 |
| 200-520A2 | 605-756-907 | 82.5-76.5-70 | 170-192-215 | 250×200 |
| 200-520A3 | 565-706-847 | 67-62.5-55 | 132-148-163 | 250x200 |
| 200-520A4 | 518-647-778 | 52.3-47.5-42 | 98-107-117 | 250x200 |
| 200-520B1 | 558-734-880 | 88-81.7-73.2 | 175-197-219 | 250×200 |
| 200-520ب2 | 556-695-834 | 74-68-60 | 141-159-172 | 250×200 |
| 200-520ب3 | 524-655-786 | 60-55-48.8 | 109-123-134 | 250x200 |
| 200-520B4 | 478-598-717 | 48-43.5-38 | 81-91-98 | 250x200 |
| 200-670A1 | 634-792-936 | 157.5-150-140 | 350-404-457 | 250x200 |
| 200-670A2 | 596-745-894 | 134.5-127-114.5 | 285-328-367 | 250×200 |
| 200-670A3 | 562-702-842 | 114.5-107-95.5 | 231-266-293 | 250×200 |
| 200-670A4 | 527-659-770 | 95.5-88-80 | 183-208-227 | 250×200 |
| 200-670B1 | 576-720-864 | 142-132.5-120 | 289-329-372 | 250x200 |
| 200-670ب2 | 530-662-795 | 123-114.5-104 | 231-263-296 | 250×200 |
| 200-670ب3 | 493-616-720 | 106-98.5-90 | 187-212-232 | 250×200 |
| 200-670ب4 | 455-569-683 | 90-83-73 | 149-167-184 | 250×200 |
| 250-370A1 | 840-1051-1260 | 44-39-33.5 | 118-127-137 | 300×250 |
| 250-370A2 | 795-994-1192 | 37.5-33-27.7 | 99-104-109 | 300x250 |
| 250-370A3 | 755-943-1131 | 31.5-27-21 | 83-83.6-83.6 | 300x250 |
| 250-370A4 | 756-871-1008 | 23-20-16 | 62.3-61.2-57.8 | 300×250 |
| 250-370ب1 | 823-1029-1235 | 42.3-37-31 | 112-119-124 | 300x250 |
| 250-370ب2 | 775-968-1162 | 37-32-27 | 94.9-98.1-103.6 | 300x250 |
| 250-370ب3 | 732-914-1097 | 32-27-22 | 79.7-80-82.2 | 300x250 |
| 250-370ب4 | 680-850-1020 | 25.6-22-17 | 61.6-62.1-61.3 | 300x250 |
| 250-480A1 | 938-1173-1408 | 73.5-66-58 | 222-239-262 | 300x250 |
| 250-4802 | 864-1080-1296 | 60.5-55-47.5 | 166-188-202 | 300x250 |
| 250-480A3 | 800-1000-1200 | 50-45.5-38 | 136-149-160 | 300x250 |
| 250-480A4 | 743-929-1115 | 42-37.5-32 | 110-119-126 | 300x250 |
| 250-480ب1 | 864-1044-1296 | 62-55.5-45 | 177-191-199 | 300×250 |
| 250-480ب2 | 780-976-1171 | 53.5-47-42 | 141-149-163 | 300×250 |
| 250-480ب3 | 708-886-1063 | 45-40.5-34 | 111-121-126 | 300x250 |
| 250-480ب4 | 642-803-963 | 40-34.5-28.5 | 94.6-96.1-98.4 | 300×250 |
| 250-600A1 | 994-1242-1490 | 126-116-105 | 411-467-520 | 300x250 |
| 250-600A2 | 933-1166-1400 | 108-100-90 | 333-380-421 | 300×250 |
| 250-600A3 | 867-1084-1300 | 90-83-73.5 | 262-295-322 | 300x250 |
| 250-600A4 | 800-1000-1200 | 74-66-60 | 201-218-244 | 300×250 |
| 250-600B1 | 835-1044-1253 | 114-104-91.5 | 320-356-381 | 300×250 |
| 250-600ب2 | 772-965-1158 | 98-90-80 | 255-287-311 | 300x250 |
| 250-600ب3 | 700-875-1050 | 80.3-74.5-66 | 192-218-235 | 300x250 |
| 250-600ب4 | 640-800-960 | 67.5-62-56.5 | 149-168-186 | 300x250 |
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 250-710A1 | 904-1130-1356 | 184-175-164 | 579-674-775 | 300x250 |
| 250-710A2 | 782-978-1174 | 161-152-141 | 444-513-578 | 300x250 |
| 250-710A3 | 738-922-1106 | 136-128-118 | 358-415-465 | 300x250 |
| 250-710A4 | 692-865-1038 | 113-106-99 | 280-325-360 | 300x250 |
| 300-300A1 | 878-1098-1318 | 28.8-24.5-20 | 83.8-85.2-89.4 | 350x300 |
| 300-300A2 | 835-1044-1253 | 23.5-19.8-15 | 66.4-66.6-63.2 | 350x300 |
| 300-300A3 | 806-1008-1210 | 19-15.5-11.4 | 52.8-51.9-48.2 | 350x300 |
| 300-300A4 | 772-965-1158 | 15-11.5-7.5 | 41.5-37.8-32 | 350x300 |
| 300-300ب1 | 745-936-1123 | 26.2-23-20 | 64.4-69-72.9 | 350x300 |
| 300-300ب2 | 691-864-1037 | 24-20-15.8 | 56.2-56-55.1 | 350x300 |
| 300-300ب3 | 639-800-960 | 20-16.7-13.5 | 45.5-44.9-44.6 | 350x300 |
| 300-300ب4 | 560-700-840 | 17.5-15-12 | 37.1-37.1-36.1 | 350x300 |
| 300-435A1 | 1342-1677-2012 | 60-53-46 | 257-275-295 | 400x300 |
| 300-435A2 | 1262-1577-1892 | 52-45-37.5 | 213-223-230 | 400x300 |
| 300-435A3 | 1181-1476-1771 | 42.5-36.5-28.5 | 171-175-172 | 400x300 |
| 300-435A4 | 1088-1360-1530 | 33.8-27.5-24 | 132-129-128 | 400x300 |
| 300-435B1 | 1396-1620-1944 | 57.5-51.5-43.5 | 240-260-273 | 400x300 |
| 300-435ب2 | 1215-1519-1823 | 51.5-45-37.5 | 206-215-222 | 400x300 |
| 300-435ب3 | 1138-1422-1706 | 43.5-37.5-30 | 168-173-174 | 400x300 |
| 300-435ب4 | 1066-1332-1598 | 35-30.5-24.8 | 130-136-138 | 400x300 |
| 300-56011 | 1397-1745-2095 | 101.5-94-83.5 | 454-520-570 | 400x300 |
| 300-560A2 | 1316-1645-1974 | 83.5-76-67 | 357-398-433 | 400x300 |
| 300-560A3 | 1258-1573-1888 | 68-63-54 | 281-313-339 | 400x300 |
| 300-560A4 | 1213-1516-1819 | 57-50-42 | 232-247-260 | 400x300 |
| 300-560B1 | 1238-1548-1858 | 88.5-80-70 | 359-399-427 | 400x300 |
| 300-560ب2 | 1158-1447-1736 | 75-67-57 | 286-316-331 | 400x300 |
| 300-560ب3 | 1089-1361-1633 | 64-57-50 | 235-255-273 | 400x300 |
| 300-560B4 | 1026-1282-1538 | 53-47.5-41 | 186-204-213 | 400x300 |
| 300-700A1 | 1469-1836-2070 | 170-160-151 | 810-941-1012 | 400x300 |
| 300-700A2 | 1388-1735-2082 | 147-136-125 | 662-760-854 | 400x300 |
| 300-700A3 | 1298-1623-1948 | 122-112-100 | 521-567-647 | 400x300 |
| 300-700A4 | 1230-1537-1845 | 100-91-80 | 408-454-500 | 400x300 |
| نموذج | نطاق التدفق م³/ساعة |
نطاق الجهد m |
نطاق الطاقة كيلووات |
الاسم المميز مم |
| 300-700B1 | 1350-1688-2026 | 152-139-124 | 679-765-840 | 400x300 |
| 300-700ب2 | 1258-1573-1888 | 130-119-105 | 544-614-667 | 400x300 |
| 300-700ب3 | 1160-1450-1740 | 108-99-87 | 422-474-512 | 400x300 |
| 300-700ب4 | 1074-1342-1610 | 90-81-71.5 | 328-361-391 | 400x300 |
| 350-360A1 | 1385-1731-2077 | 37.5-32-25 | 171-175-175 | 400x350 |
| 350-360A2 | 1354-1692-2030 | 32-26.5-20 | 146-144-138 | 400x350 |
| 350-360A3 | 1313-1641-1969 | 26.5-21-15 | 120-113-103 | 400x350 |
| 350-360A4 | 1282-1602-1922 | 20-15-9 | 91-81-64 | 400x350 |
| 350-360B1 | 1138-1422-1706 | 35.5-31-25.8 | 133-140-144 | 400x350 |
| 350-360ب2 | 1068-1335-1602 | 30.5-26.3-21.3 | 110-114-115 | 400x350 |
| 350-360ب3 | 1016-1270-1524 | 25.6-22.5-17.5 | 90-95-93 | 400x350 |
| 350-360B4 | 950-1188-1397 | 21.5-17.8-13.7 | 74-74-71 | 400x350 |
| 350-430A1 | 2194-2743-3292 | 49.5-43.5-35 | 353-371-371 | 450x350 |
| 350-430A2 | 2108-2635-3162 | 41.5-35-27 | 291-294-281 | 450x350 |
| 350-430A3 | 2050-2563-3076 | 33-27.5-20 | 231-229-210 | 450x350 |
| 350-430A4 | 1987-2484-2981 | 27-21.5-15 | 187-180-160 | 450x350 |
| 350-430B1 | 1786-2232-2678 | 48-42.5-35 | 277-299-303 | 450x350 |
| 350-430ب2 | 1670-2088-2506 | 42.5-36-28.8 | 237-242-240 | 450x350 |
| 350-430ب3 | 1590-1987-2384 | 35-30-23.5 | 193-198-195 | 450x350 |
| 350-430ب4 | 1486-1858-2230 | 30-25-18.5 | 160-161-148 | 450x350 |
| 350-510A1 | 2088-2610-3132 | 80-70-60 | 529-562-605 | 400x350 |
| 350-510A2 | 1944-2430-2916 | 68-60-50 | 426-456-473 | 400x350 |
| 350-510A3 | 1786-2232-2678 | 57.5-50-40 | 345-353-360 | 400x350 |
| 350-510A4 | 1656-2070-2484 | 45-38-30 | 267-271-264 | 400x350 |
| 350-510B1 | 1958-2448-2938 | 76-67-57 | 466-508-531 | 400x350 |
| 350-510ب2 | 1814-2268-2722 | 67.5-59.5-50 | 393-422-436 | 400x350 |
| 350-510ب3 | 1670-2088-2506 | 58-50-41.5 | 320-335-344 | 400x350 |
| 350-510B4 | 1555-1944-2333 | 47.5-41.5-34.5 | 258-265-274 | 400x350 |
| 350-590A1 | 3036-3795-4500 | 100-90-78 | 956-1046-1139 | 500x350 |
| 350-590A2 | 2834-3543-4162 | 88-77.2-66 | 800-857-891 | 500x350 |
| 350-590A3 | 2604-3255-3906 | 74-64.3-53 | 648-663-688 | 500x350 |
| 350-590A4 | 2556-3020-3623 | 56-48.9-40.6 | 497-509-517 | 500x350 |

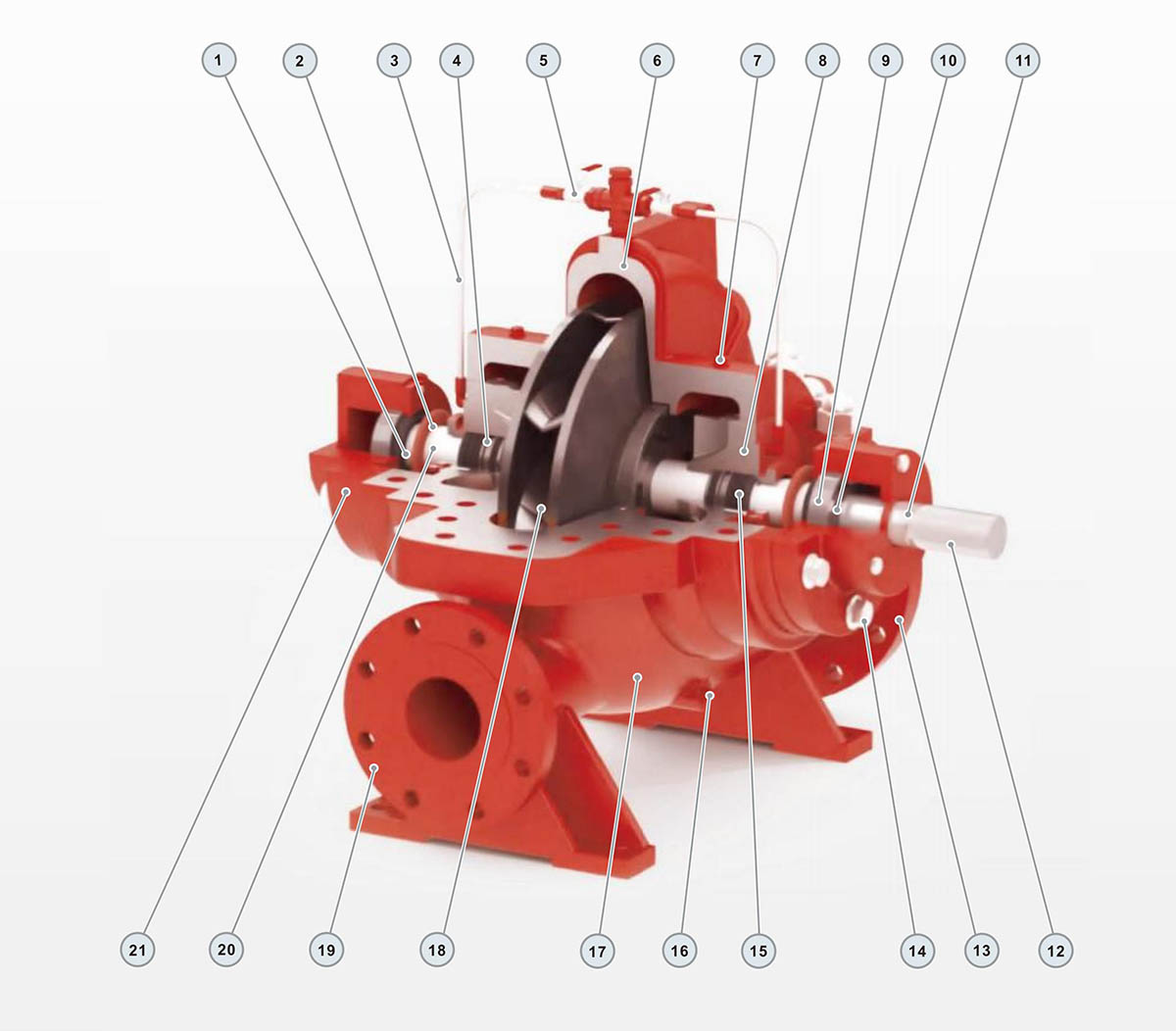

| لا. | وصف | مادة |
| 1 | حلقة الاحتفاظ |
ممحاة |
| 2 | يا الدائري | ممحاة |
| 3 | أنبوب التنظيف | SS304 |
| 4 | يا الدائري | الكربون |
| 5 | صمام | النحاس |
| 6 | غطاء المضخة | الحديد الزهر |
| 7 | قابس تنفيس | النحاس |
| لا. | وصف | مادة |
| 8 | ختم السكن | الحديد الزهر |
| 9 | تحمل | محمل كروي |
| 10 | غسالة القفل | فُولاَذ |
| 11 | رمح | الصلب SS304/45 |
| 12 | مفتاح رمح | الحديد الزهر |
| 13 | شفة المدخل | الحديد الزهر |
| 14 | بولت | فُولاَذ |
| لا. | وصف | مادة |
| 15 | ختم العمود (الختم الميكانيكي) | سينثيباك (SiC-كربون) |
| 16 | صمام العادم | النحاس |
| 17 | غلاف المضخة | الحديد الزهر |
| 18 | المكره | SS304/الحديد الزهر |
| 19 | شفة المخرج | الحديد الزهر |
| 20 | كم رمح | SS304 |
| 21 | تحمل السكن | الحديد الزهر |

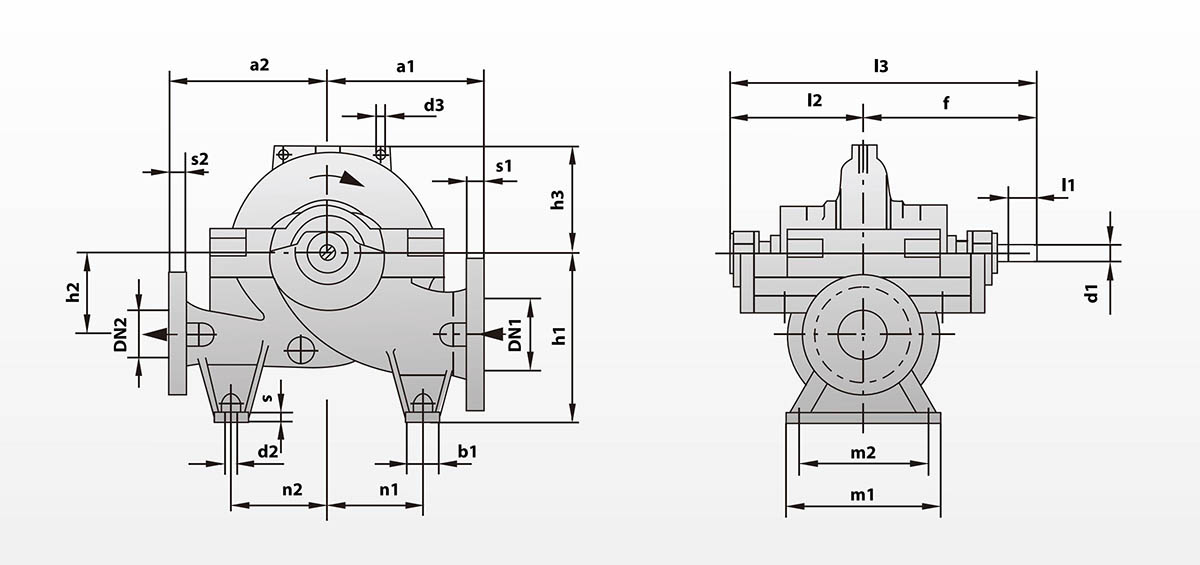

| نموذج | الأبعاد، مم | كلغ | |||||||||||||||||||||
| الاسم المميز1 | DN2 | S1 | S2 | a1 | a2 | د3 | f | h1 | h2 | h3 | I2 | 13 | ب1 | د2 | م1 | م2 | ن1 | ن2 | S | د1 | 11 | ||
| 80-210 | 125 | 80 | 34 | 29 | 300 | 300 | 19 | 415 | 315 | 140 | 168 | 300 | 715 | 70 | 17.5 | 320 | 270 | 170 | 170 | 20 | 35 | 80 | 185 |
| 80-270 | 125 | 80 | 34 | 29 | 300 | 300 | 19 | 415 | 315 | 140 | 190 | 300 | 715 | 70 | 17.5 | 320 | 270 | 170 | 170 | 20 | 35 | 80 | 195 |
| 80-370 | 125 | 80 | 34 | 29 | 330 | 330 | 19 | 415 | 315 | 140 | 225 | 300 | 715 | 70 | 17.5 | 320 | 270 | 170 | 170 | 20 | 35 | 80 | 205 |
| 100-250 | 150 | 100 | 37 | 32 | 330 | 330 | 19 | 415 | 355 | 170 | 195 | 300 | 715 | 70 | 17.5 | 320 | 270 | 200 | 200 | 20 | 35 | 80 | 210 |
| 100-310 | 150 | 100 | 37 | 32 | 330 | 330 | 19 | 415 | 355 | 170 | 225 | 300 | 715 | 70 | 17.5 | 320 | 270 | 200 | 200 | 20 | 35 | 80 | 225 |
| 100-375 | 150 | 100 | 37 | 32 | 370 | 370 | 19 | 415 | 355 | 170 | 260 | 300 | 715 | 70 | 17.5 | 320 | 270 | 200 | 200 | 20 | 35 | 80 | 245 |
| 125-230 | 200 | 125 | 41 | 35 | 370 | 370 | 19 | 515 | 400 | 200 | 210 | 366 | 881 | 70 | 17.5 | 390 | 340 | 225 | 225 | 20 | 45 | 100 | 250 |
| 125-290 | 200 | 125 | 41 | 35 | 370 | 370 | 19 | 515 | 400 | 200 | 230 | 366 | 881 | 70 | 17.5 | 390 | 340 | 225 | 225 | 20 | 45 | 100 | 275 |
| 125-365 | 200 | 125 | 41 | 35 | 370 | 370 | 19 | 515 | 400 | 200 | 260 | 366 | 881 | 70 | 17.5 | 390 | 340 | 225 | 225 | 20 | 45 | 100 | 300 |
| 125-500 | 200 | 125 | 41 | 35 | 450 | 450 | 19 | 515 | 400 | 200 | 305 | 366 | 881 | 70 | 17.5 | 390 | 340 | 280 | 280 | 20 | 45 | 100 | 335 |
| 150-290 | 200 | 150 | 41 | 37 | 400 | 400 | 19 | 515 | 400 | 200 | 245 | 366 | 881 | 70 | 17.5 | 390 | 340 | 225 | 225 | 20 | 45 | 100 | 350 |
| 150-360 | 200 | 150 | 41 | 37 | 400 | 400 | 19 | 515 | 400 | 200 | 265 | 366 | 881 | 70 | 17.5 | 390 | 340 | 225 | 225 | 20 | 45 | 100 | 360 |
| 150-460 | 200 | 150 | 41 | 37 | 450 | 450 | 19 | 590 | 400 | 200 | 305 | 399 | 989 | 70 | 17.5 | 480 | 430 | 280 | 280 | 20 | 55 | 125 | 440 |
| 150-605 | 200 | 150 | 41 | 37 | 600 | 500 | 19 | 590 | 500 | 300 | 370 | 399 | 989 | 70 | 17.5 | 480 | 430 | 350 | 380 | 20 | 55 | 125 | 650 |
| 200-320 | 250 | 200 | 48 | 41 | 450 | 450 | 24.5 | 590 | 500 | 240 | 285 | 399 | 989 | 70 | 17.5 | 480 | 430 | 280 | 280 | 20 | 55 | 125 | 450 |
| 200-420 | 250 | 200 | 48 | 41 | 500 | 500 | 24.5 | 590 | 500 | 240 | 310 | 399 | 989 | 70 | 17.5 | 480 | 430 | 280 | 280 | 20 | 55 | 125 | 520 |
| 200-520 | 250 | 200 | 48 | 41 | 600 | 500 | 24.5 | 655 | 560 | 300 | 370 | 464 | 1119 | 70 | 22 | 480 | 400 | 350 | 350 | 26 | 65 | 140 | 840 |
| 200-670 | 250 | 200 | 48 | 41 | 650 | 550 | 24.5 | 655 | 600 | 350 | 430 | 464 | 1119 | 100 | 22 | 480 | 400 | 350 | 350 | 26 | 65 | 140 | 990 |
| 250-370 | 300 | 250 | 33 | 32 | 500 | 500 | 12.5 | 655 | 600 | 300 | 320 | 464 | 1119 | 100 | 22 | 480 | 400 | 350 | 350 | 26 | 65 | 140 | 665 |
| 250-480 | 300 | 250 | 51 | 48 | 550 | 550 | 12.5 | 730 | 600 | 300 | 355 | 515 | 1245 | 100 | 22 | 600 | 520 | 350 | 350 | 26 | 75 | 160 | 830 |
| 250-600 | 300 | 250 | 51 | 48 | 650 | 550 | 12.5 | 730 | 630 | 350 | 415 | 515 | 1245 | 100 | 22 | 600 | 520 | 350 | 350 | 26 | 75 | 160 | 1215 |
| 300-300 | 350 | 300 | 36 | 33 | 550 | 500 | 24.5 | 655 | 630 | 300 | 360 | 464 | 1119 | 100 | 22 | 480 | 400 | 350 | 350 | 26 | 65 | 140 | 630 |
| 300-435 | 400 | 300 | 38 | 33 | 650 | 550 | 24.5 | 730 | 670 | 350 | 365 | 515 | 1245 | 100 | 22 | 600 | 520 | 350 | 350 | 26 | 75 | 160 | 905 |
| 300-560 | 400 | 300 | 57 | 51 | 700 | 650 | 24.5 | 810 | 710 | 350 | 430 | 585 | 1395 | 100 | 22 | 600 | 520 | 475 | 475 | 26 | 85 | 180 | 1425 |
| 300-700 | 400 | 300 | 57 | 51 | 750 | 650 | 24.5 | 810 | 750 | 400 | 480 | 585 | 1395 | 100 | 22 | 600 | 520 | 475 | 475 | 26 | 85 | 180 | 1690 |
| 350-360 | 400 | 350 | 38 | 36 | 650 | 550 | 24.5 | 730 | 670 | 350 | 410 | 515 | 1245 | 100 | 22 | 600 | 520 | 350 | 350 | 26 | 75 | 160 | 865 |
| 350-430 | 450 | 350 | 41 | 36 | 750 | 650 | 24.5 | 810 | 750 | 400 | 465 | 585 | 1395 | 100 | 22 | 600 | 520 | 475 | 475 | 26 | 85 | 180 | 1285 |
| 350-510 | 400 | 350 | 38 | 36 | 700 | 650 | 24.5 | 810 | 750 | 400 | 420 | 585 | 1395 | 100 | 22 | 600 | 520 | 475 | 475 | 26 | 85 | 180 | 1395 |
